LUXWORLD

Series 70 Recess Curtain Track - Hidden Ceiling Track System For Luxury Interiors

Architectural Recess Curtain Tracking

Series 70 Recess
designed to disappear into the architecture.

Name: Series 70 Recess Curtain Track - Hidden Ceiling Track System For Luxury Interiors
Brand: LUXWORLD
Price: 130.0 AUD
Availability: InStock

A concealed aluminium curtain track for new homes, renovations and recessed plasterboard ceilings. Series 70 creates the appearance that the curtain falls directly from the ceiling.

14mm Recess Direct Structural Fixing Pre-Drilled Top Fixing Hand Drawn Only

Design Your Track → Explore Tracks

Series 70 recessed curtain track for concealed plasterboard ceiling installation

Series 70 Architectural Recess Curtain Tracking System

Recess14mm Parallel Opening

OperationHand Drawn

MountingPre-Drilled Top Fixing

LayoutStraight or Bent

Why Series 70

Invisible by design. Precise by construction.

01

Seamless Ceiling Integration

The integrated flange supports the plasterboard edge, leaving only the slim running channel visible.

02

Direct Structural Fixing

Pre-drilled countersunk fixing points allow accurate installation into suitable continuous timber support.

03

Conventional & S-Wave Ready

Suitable for light to medium conventional and S-Wave curtains in single or double recessed layouts.

Technical Information

Essential recessed-track specifications.

The key information customers and builders need before planning the ceiling.

Recess Opening

Straight, parallel 14mm ceiling opening

Operation

Hand drawn operation only

Mounting

Top fixed directly through the track into suitable continuous timber support

Headings

S-Wave and conventional curtain headings

Bending

Degree bends and selected continuous curves with approximately 150mm minimum radius

Finish

White

View Builder & Installation Details

Plasterboard Flange

Integrated flange approximately 4.5mm wide supports the plasterboard edge.

Pre-Drilled Fixing

Countersunk fixing points are positioned approximately every 150mm.

Maximum Continuous Length

LUXWORLD supplies continuous lengths up to approximately 5.8m.

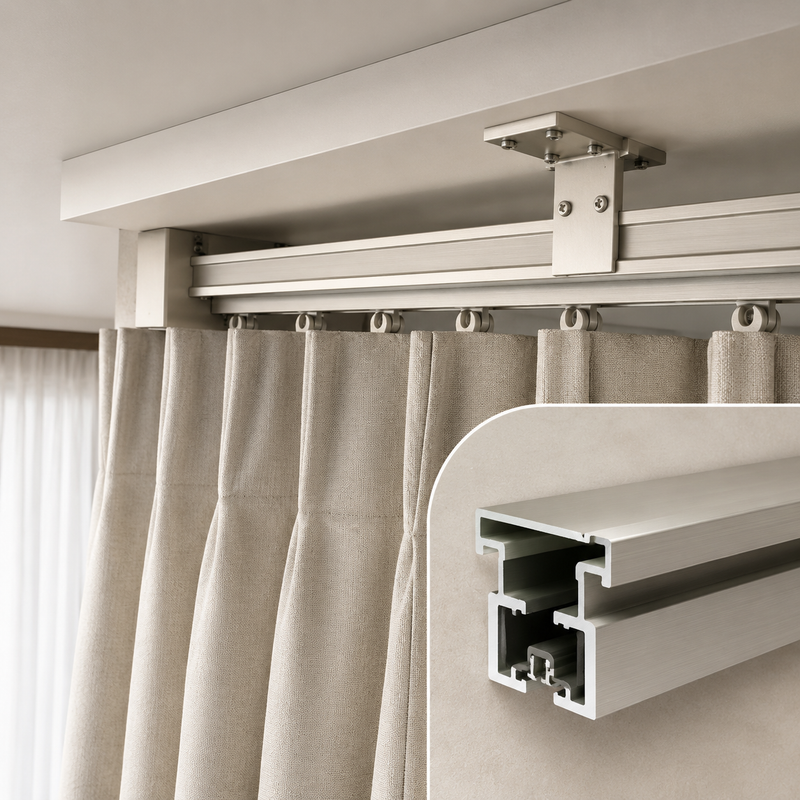

Runner Loading

An optional capped loading slot allows runners to be installed after plastering and painting.

General Wall Clearance

Allow approximately 40mm for standard curtains and approximately 60mm for S-Wave, subject to the final curtain specification.

Double Track Planning

Allow approximately 120mm for standard plus S-Wave and around 140mm for two S-Wave layers, subject to site conditions.

Available Finish

Clean, seamless white.

White Designed to blend neatly with plasterboard ceilings and recessed architectural details.

LUXWORLD5-Year Track Warranty

LUXWORLDConfigured to Project

LUXWORLDAustralia-Wide Delivery

LUXWORLDBuilder Technical Support

Plan your recessed track with confidence.

Enter the exact width, heading, layout, stacking direction and bend requirements. The LUXWORLD Design Studio™ prepares the configured price and compatible Series 70 components.

Powered By LUXWORLD DESIGN STUDIO™

Design My Track →

Helpful Information

Series 70 questions, answered.

What ceiling preparation is required?

The builder should form a straight, parallel 14mm recess and provide suitable continuous timber support above the full track position before plasterboard finishing.

Can Series 70 be used for S-Wave curtains?

Yes. Series 70 supports S-Wave and conventional headings when the correct runners, wall clearances and curtain spacing are allowed.

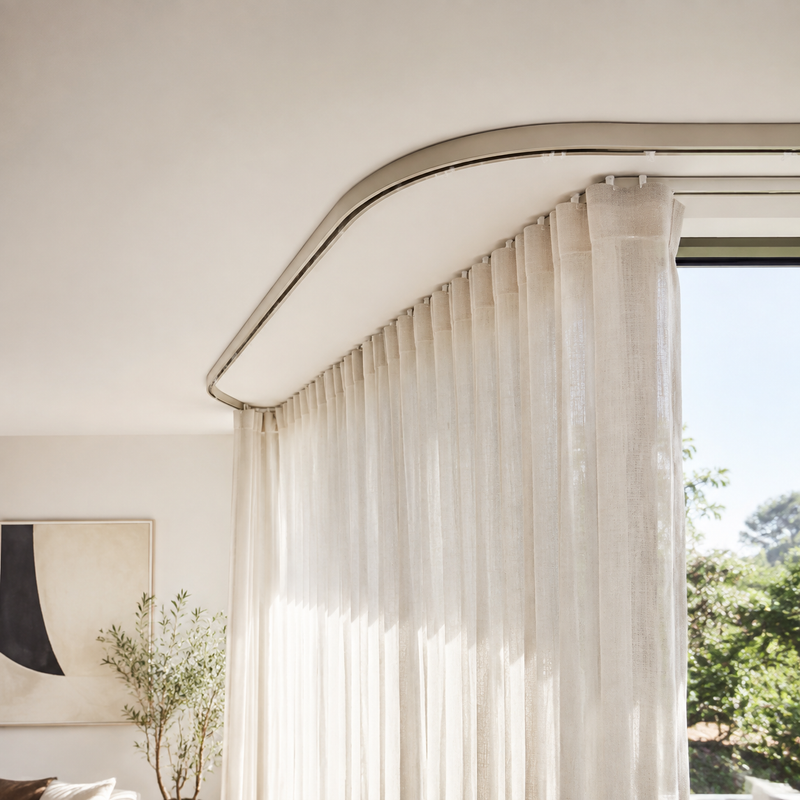

Can Series 70 be bent?

Yes. Degree bends and selected continuous curves are available with an approximate minimum radius of 150mm, subject to manufacturing assessment.

Luxworld Series 74 curtain track shown mounted above a window in a styled interior room, with large promotional text on a dark background.

Series 74 Venice Curtain Track | S Fold & Bendable Curtain Track Perth

LUXWORLD

Series 74 Venice Curtain Track | S Fold & Bendable Curtain Track Perth

Luxury Decorative Curtain Tracking

Series 74 Venice
crafted for interiors where every detail matters.

A premium 11 × 24mm decorative aluminium curtain track for interiors where presentation and performance are equally important. Series 74 Venice combines Easy Clip mounting, smooth operation and refined metallic finishes for a considered architectural result.

11 × 24mm Profile Easy Clip Brackets Hand, Wand or Cord Drawn 150mm Radius Bends

Design Your Track → Explore Tracks

Series 74 Venice decorative curtain track in premium finish

Series 74 Venice Luxury Decorative Curtain Tracking System

Profile11 × 24mm Aluminium

OperationHand, Wand or Cord

MountingCeiling or Face Fix

LayoutStraight or Curved

Why Series 74 Venice

Decorative by design. Refined in every detail.

01

Architectural Elegance

The beautifully proportioned aluminium profile is designed to complement the interior rather than disappear within it.

02

Precision Installation

The Easy Clip bracket system supports clean, secure ceiling and face-fix installation.

03

Conventional & S-Wave Ready

Suitable for S-Wave and conventional curtains with smooth movement and an impeccably tailored appearance.

Technical Information

Essential decorative-track specifications.

The key information customers, designers and installers need before configuring the track.

Profile

11mm × 24mm extruded aluminium profile

Operation

Hand drawn, wand drawn or cord drawn; cord operation is recommended for straight tracks

Mounting

Ceiling or wall mounted using Easy Clip brackets; single and double track layouts available

Headings

S-Wave and conventional curtain headings

Bending

150mm radius bends and selected continuous curves

Finish

White, Platinum, Black and Linished Champagne

View Builder & Installation Details

Construction

Extruded aluminium with powder-coated and linished finish options.

Bracket Options

Easy Clip ceiling and face-fix brackets are available for single and double layouts.

Carrier Options

Roller and clear S-Wave carriers are available for suitable curtain headings.

Custom Layouts

Factory bends and selected continuous curves are available for suitable project layouts.

Available Finish

Luxury finishes for contemporary interiors.

White

Platinum

Black

Linished Champagne

LUXWORLD5-Year Track Warranty

LUXWORLDMade to Order

LUXWORLDAustralia-Wide Delivery

LUXWORLDTechnical Project Support

Create a track tailored to your interior.

Enter the exact width, curtain heading, fixing method, operation, colour and bend requirements. The LUXWORLD Design Studio™ prepares your customised Series 74 configuration and compatible hardware.

Powered By LUXWORLD DESIGN STUDIO™

Design My Track →

Helpful Information

Series 74 questions, answered.

Is Series 74 suitable for S-Wave curtains?

Yes. Series 74 is designed for elegant S-Wave presentation and also supports conventional curtain headings.

Can Series 74 be ceiling fixed or face fixed?

Yes. Easy Clip brackets support both ceiling and face-fix installation, including suitable single and double track arrangements.

Can Series 74 be bent for architectural windows?

Yes. Factory bends and selected continuous curves are available with an approximate 150mm radius, subject to the final project layout.

Luxworld Series 50 Curtain Tracks shown mounted on a window track bar in a modern living room setting. The white aluminum track and white plastic clips are featured against a dark background with gold text highlighting strength, smooth performance, and suitability for beautiful windows.

Series 50 Milan Curtain Track | Modern Slimline S Fold Track Perth

LUXWORLD

Series 50 Milan Curtain Track | Modern Slimline S Fold Track Perth

Slimline Easy Clip Curtain Tracking

Series 50 Milan
compact engineering with refined presence.

A compact 16 × 16mm aluminium curtain track for residential and selected commercial interiors. Series 50 Milan combines Easy Clip mounting, concealed face-fix screws and smooth carrier options for conventional and S-Wave curtains.

16 × 16mm Profile Easy Clip Mounting Hand Drawn Operation 150mm Radius Bends

Design Your Track → Explore Tracks

Series 50 Milan slimline aluminium curtain track with Easy Clip mounting

Series 50 Milan Slimline Easy Clip Curtain Tracking System

Profile16 × 16mm Aluminium

OperationHand Drawn

MountingEasy Clip Mounting

LayoutStraight or Curved

Why Series 50

Compact by design. Versatile in application.

01

Slim Square Profile

The compact 16 × 16mm aluminium profile creates a clean, modern and unobtrusive appearance.

02

Easy Clip Installation

Easy Clip ceiling and face-fix brackets support efficient installation and servicing.

03

Conventional & S-Wave Ready

Roller and clear S-Wave carriers support smooth, controlled curtain movement.

Technical Information

Essential slimline-track specifications.

The key information customers, designers and installers need before configuring Series 50.

Profile

16mm × 16mm extruded aluminium profile

Operation

Hand drawn operation only

Mounting

Easy Clip ceiling and face-fix brackets for single and double track layouts

Headings

S-Wave and conventional curtain headings

Bending

150mm radius bends and selected continuous curves

Finish

White, Platinum and Black

View Builder & Installation Details

Construction

Extruded aluminium with powder-coated and electrophoretic finish options.

Bracket Options

Easy Clip ceiling and face-fix brackets are available for single and double layouts.

Carrier Options

Roller carriers suit conventional curtains, while clear carriers suit S-Wave configurations.

Face-Fix Finish

Cover plates are available to conceal face-fix bracket screws and create a cleaner appearance.

Available Finish

Premium finishes for modern interiors.

White

Platinum

Black

LUXWORLD5-Year Track Warranty

LUXWORLDMade to Order

LUXWORLDAustralia-Wide Delivery

LUXWORLDTechnical Project Support

Configure Series 50 for your exact project.

Enter the exact width, curtain heading, fixing method, single or double layout, colour and bend requirements. The LUXWORLD Design Studio™ prepares your customised Series 50 configuration and compatible hardware.

Powered By LUXWORLD DESIGN STUDIO™

Design My Track →

Helpful Information

Series 50 questions, answered.

Can Series 50 be used for S-Wave curtains?

Yes. Series 50 supports clear S-Wave carriers as well as roller carriers for conventional curtain headings.

Can Series 50 be ceiling fixed or face fixed?

Yes. Easy Clip ceiling and face-fix brackets are available for single and double track arrangements, with cover plates for a cleaner wall-mounted finish.

Can Series 50 be bent or continuously curved?

Yes. The aluminium profile can be formed to approximately a 150mm radius and selected continuous curves, subject to the project layout and manufacturing assessment.

Luxworld Series 51 Curtain Tracks shown mounted on a window rod in a modern living room setting, with promotional text and feature icons on a dark background.

Series 51 Commercial Curtain Track – Heavy Duty Residential & Commercial Curtain Tracking

LUXWORLD

Series 51 Commercial Curtain Track – Heavy Duty Residential & Commercial Curtain Tracking

Commercial & Domestic Curtain Tracking

Series 51
commercial strength with residential versatility.

A concealed aluminium curtain track for new homes, renovations and recessed plasterboard ceilings. Series 51 creates the appearance that the curtain falls directly from the ceiling.

20 × 16mm Profile Extensive Bracket Range Large Bracket Range Hand or Cord Drawn

Design Your Track → Explore Tracks

Series 51 commercial and domestic aluminium curtain tracking system

Series 51 Commercial & Domestic Curtain Tracking System

Profile20 × 16mm Aluminium

OperationHand or Cord Drawn

MountingLarge Bracket Range

LayoutStraight or Curved

Why Series 51

Commercial strength. Flexible in application.

01

Commercial-Grade Strength

The strong 20 × 16mm aluminium profile is suited to lightweight sheers, heavier blockouts and high-use interiors.

02

Extensive Bracket Range

Face-fix and ceiling-fix brackets are available for single and double track layouts across varied site conditions.

03

Conventional & S-Wave Ready

Swivel, non-swivel, heavy-duty, roller and clear S-Wave carriers are available for different curtain headings and loads.

Technical Information

Essential commercial-track specifications.

The key information customers, designers and installers need before configuring Series 51.

Profile

20mm × 16mm extruded aluminium profile

Operation

Hand drawn or cord drawn; cord operation is suitable for straight tracks only

Mounting

Face-fix and ceiling-fix brackets for single and double track installations

Headings

Conventional, pinch pleat and S-Wave curtain headings

Bending

150mm radius bends and continuous curves for suitable hand-drawn tracks

Finish

White

View Builder & Installation Details

Construction

Extruded aluminium with a durable powder-coated finish.

Bracket Options

Standard, small, large and double ceiling brackets plus single, double and large face-fix brackets are available.

Carrier Options

Swivel, non-swivel, heavy-duty, roller and clear S-Wave carriers are available.

Curved Track Planning

Continuous curves require an accurate full-size template; degree bends require a dimensioned drawing.

Available Finish

Durable finishes for residential and commercial interiors.

White

Black

LUXWORLD5-Year Track Warranty

LUXWORLDMade to Order

LUXWORLDAustralia-Wide Delivery

LUXWORLDTechnical Project Support

Configure Series 51 for the exact curtain load.

Enter the exact width, curtain heading, fixing method, single or double layout, colour and bend requirements. The LUXWORLD Design Studio™ prepares your customised Series 51 configuration and compatible hardware.

Powered By LUXWORLD DESIGN STUDIO™

Design My Track →

Helpful Information

Series 51 questions, answered.

What curtains is Series 51 suitable for?

Series 51 suits conventional, pinch pleat and S-Wave curtains, ranging from lightweight sheers to heavier blockout curtains when correctly specified.

Can Series 51 be face fixed or ceiling fixed?

Yes. Easy Clip ceiling and face-fix brackets are available for single and double track arrangements, with cover plates for a cleaner wall-mounted finish.

Can Series 51 be cord drawn and bent?

Yes. The aluminium profile can be formed to approximately a 150mm radius and selected continuous curves, subject to the project layout and manufacturing assessment.

Series 57 Fineline Curtain Track | Commercial S Fold Curtain Tracking Perth

LUXWORLD

Series 57 Fineline Curtain Track | Commercial S Fold Curtain Tracking Perth

Fineline Commercial Curtain Tracking

Series 57
minimal profile with commercial strength.

Series 57 combines a discreet 20 × 14mm aluminium profile with reliable performance for residential, architectural and medium-weight commercial applications. It supports conventional and S-Fold curtain headings, multiple bracket options, straight-track cord draw and tight 150mm factory bends.

20 × 14mm Fineline Profile Ceiling & Face Fix Hand or Cord Drawn 150mm Radius Bends

Design Your Track → Explore Tracks

Series 57 Fineline aluminium curtain tracking system

Series 57 Fineline Commercial Curtain Tracking System

Profile20 × 14mm Aluminium

OperationHand or Cord Drawn

MountingCeiling or Face Fix

LayoutStraight or Bent

Why Series 57

A discreet profile built for demanding projects.

01

Fineline Appearance

The slim 20 × 14mm aluminium profile creates a discreet architectural finish without sacrificing strength.

02

Flexible Mounting

Ceiling-fix and face-fix brackets support single and double track systems across varied site conditions.

03

S-Fold & Conventional Ready

Compatible with conventional, S-Fold and Wave Fold curtains using roller, snap-in and clear wave carriers.

Technical Information

Fineline specifications. Project-ready performance.

Essential Series 57 information for architects, builders, designers, installers and homeowners.

Profile

20mm × 14mm fineline extruded aluminium profile

Operation

Hand drawn or cord drawn for suitable straight tracks; cord draw is not recommended for longer spans

Mounting

Ceiling-fix and face-fix brackets for single and double track systems

Headings

Conventional, S-Fold and Wave Fold curtain headings

Bending

Factory 45°, 90° and custom bends at approximately 150mm radius

Finishes

White, Platinum and Black

View Builder & Installation Details

Construction

Extruded aluminium with powder-coated finish options.

Bracket Options

Ceiling-fix and face-fix brackets are available for single and double track systems.

Carrier Options

Roller, snap-in, swivel and clear wave carriers are available to suit the curtain heading.

Factory Bend Options

Suitable hand-drawn tracks can be factory bent to 45°, 90° or custom angles at approximately a 150mm radius.

Available Finishes

Architectural finishes for modern projects.

White

Platinum

Black

LUXWORLD5-Year Track Warranty

LUXWORLDMade to Order

LUXWORLDAustralia-Wide Delivery

LUXWORLDTechnical Project Support

Configure Series 57 for your exact project.

Enter the exact width, curtain heading, fixing method, track layout, operation, colour, stacking direction and any bend requirements. The LUXWORLD Design Studio™ prepares the customised Series 57 configuration and compatible hardware.

Powered By LUXWORLD DESIGN STUDIO™

Design My Track →

Helpful Information

Series 57 questions, answered.

Is Series 57 suitable for S-Fold curtains?

Yes. Series 57 supports S-Fold and Wave Fold curtains with compatible clear wave carriers and correct spacing.

Can Series 57 be ceiling fixed or face fixed?

Yes. Ceiling and face-fix brackets are available for single and double systems, including larger bracket options where required.

Can Series 57 be bent for corners and custom layouts?

Yes. Suitable hand-drawn tracks can be factory bent to 45°, 90° or custom angles at approximately a 150mm radius.

LUXWORLD Series 58 Curtain Tracks in a white curved aluminum design with silver metal hanging rings, shown mounted against a window in a modern living room setting. The image features a dark black background with gold text highlighting the product's strength and smooth performance.

LUXWORLD Series 58 Slimline Curtain Track for curtains and drapes, showing sleek, lightweight metal rail with mounting brackets

LUXWORLD Series 58 Slimline Curtain Track for curtains and drapes, sleek and minimalist design, mounted on a wall.

LUXWORLD Series 58 Slimline Curtain Track for curtains and drapes, sleek aluminum design with mounting hardware visible

LUXWORLD Series 58 Slimline Curtain Track for curtains and drapes, sleek and modern design, mounted on a wall.

LUXWORLD Series 58 Slimline Curtain Track for curtains and drapes, sleek and durable curtain track system.

LUXWORLD Series 58 Slimline Curtain Track for curtains and drapes, sleek and modern curtain hardware for window treatments

LUXWORLD Series 58 Slimline Curtain Track for curtains and drapes, sleek metal rail with mounting brackets.

LUXWORLD Series 58 Slimline Curtain Track for curtains and drapes, showcasing sleek, modern design with adjustable mounting brackets.

LUXWORLD

Series 58 Slimline Curtain Track

Slimline Designer Curtain Tracking

Series 58
designed to be seen less and appreciated more.

Series 58 combines a slim 24 × 11mm aluminium profile with smooth hand-drawn performance for modern residential and light commercial interiors. Its discreet form supports conventional, S-Fold and Wave Fold curtains, with ceiling fixing, face fixing, single and double track layouts, and selected custom bending options.

24 × 11mm Slimline Profile Ceiling & Face Fix Hand Drawn Operation Custom Bending Available

Design Your Track → Explore Tracks

Series 58 Slimline aluminium curtain tracking system

Series 58 Slimline Designer Curtain Tracking System

Profile24 × 11mm Aluminium

OperationHand Drawn Operation

MountingCeiling or Face Fix

LayoutStraight or Custom Bent

Why Series 58

Minimal form with refined everyday performance.

01

Slimline Appearance

The 24 × 11mm aluminium profile delivers a neat, understated finish that allows the curtain to remain the visual focus.

02

Flexible Mounting

Ceiling-fix and face-fix options support clean installation across single and double curtain systems.

03

S-Fold & Conventional Ready

Compatible with conventional, S-Fold and Wave Fold curtains using suitable roller and clear wave carriers.

Technical Information

Slim specifications. Refined performance.

Essential Series 58 information for homeowners, designers, builders and installers.

Profile

Approximately 24mm × 11mm slimline extruded aluminium profile

Operation

Hand drawn / manual curtain operation

Mounting

Ceiling-fix and face-fix options for single and double track systems

Headings

Conventional, S-Fold and Wave Fold curtain headings

Bending

Custom bending available for selected bay, corner and curved applications

Finishes

White, Platinum and Black

View Builder & Installation Details

Construction

Extruded aluminium with durable finished surfaces.

Bracket Options

Ceiling-fix and face-fix brackets are available for suitable single and double track layouts.

Carrier Options

Roller runners suit conventional curtains, while clear wave runners suit S-Fold and Wave Fold systems.

Custom Layout Options

Selected bay-window, corner and curved configurations are available subject to dimensions and manufacturing approval.

Available Finishes

Three refined finishes for modern interiors.

White

Platinum

Black

LUXWORLD5-Year Track Warranty

LUXWORLDMade to Order

LUXWORLDAustralia-Wide Delivery

LUXWORLDTechnical Project Support

Configure Series 58 for your exact window and curtain layout.

Enter the exact width, curtain heading, fixing method, single or double layout, colour, stacking direction and bend requirements. The LUXWORLD Design Studio™ prepares the customised Series 58 configuration and compatible hardware.

Powered By LUXWORLD DESIGN STUDIO™

Design My Track →

Helpful Information

Series 58 questions, answered.

Is Series 58 suitable for S-Fold curtains?

Yes. Series 58 supports S-Fold and Wave Fold curtains when supplied with compatible clear carriers and correct spacing.

Can Series 58 be ceiling fixed or face fixed?

Yes. Series 58 supports both ceiling-fix and face-fix installation, including suitable single and double track systems.

Can Series 58 be bent for bay windows and corners?

Yes. Selected bay-window, corner and curved configurations are available subject to dimensions and manufacturing approval.

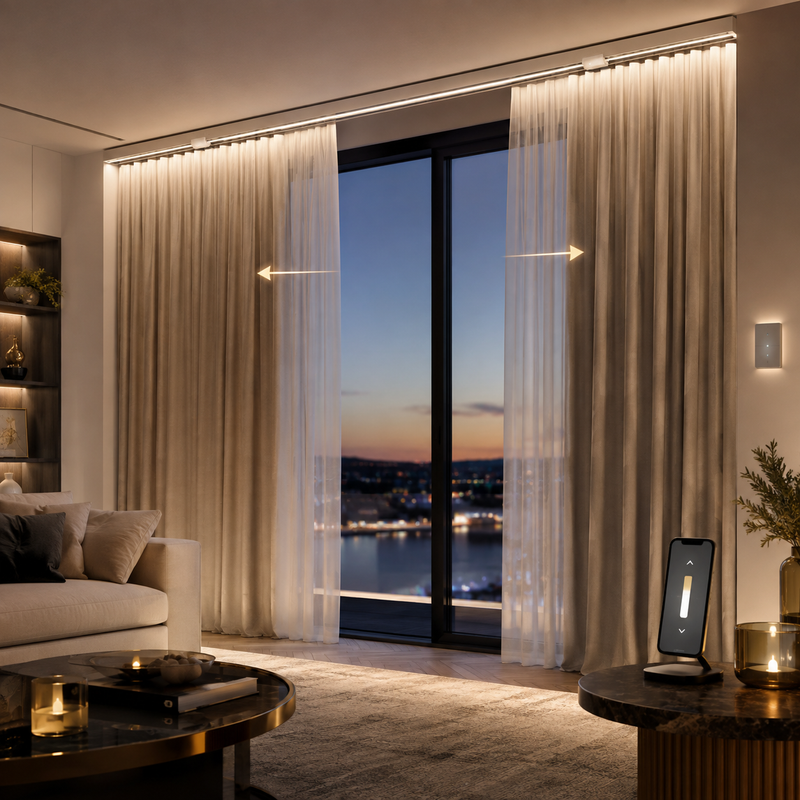

Luxworld Motolux motorized curtain track for curtains and drapes, showcasing sleek, modern design with electronic operating system.

Luxworld Motolux motorized curtain track for curtains and drapes, featuring sleek design and easy remote-controlled operation.

LUXWORLD Motolux motorized curtain track for curtains and drapes, sleek design with motorized control system.

LUXWORLD

Motolux Motorised Curtain Track

Curtain Motor Rechargeable with Lithium battery

592411000 (MR68-1.5/100-ES)

Product benefits:

– Smooth, quiet and fast operation
– User friendly
– Auto commissioning function – sets it’s own limits – simple & time saving
– Auto open and close when the curtain fabric is drawn by hand
– Manual over-ride when power is off – recommissions automatically when powered on again
– Integrates on all Motolux controls, so can be used with Motolux roller, roman and cellular blind motor systems – see more information on the controls
– Dry contact input for easy integration with automation systems (C-Bus, Dynalite)
– Remote and Automation system simultaneous control possible
– Tandem configuration possible
– Five year manufacturer’s warranty

Technical Speciation: https://motolux.com.au/wp-content/uploads/2020/07/Motolux_SS_1.2-Nm-14.8vDC-with-Rechargeable-Lithium-Battery-Pack_R2-1.pdf

LUXWORLD GlideMaster Flexi Curtain Tracks for curtains and drapes, showcasing adjustable, flexible curtain track system.

LUXWORLD GlideMaster Flexi Curtain Tracks for curtains and drapes, flexible metal track with mounting hardware and adjustable length

Luxworld GlideMaster Flexi Curtain Tracks for curtains and drapes, shown installed for smooth, adjustable window coverage.

LUXWORLD GlideMaster Flexi Curtain Tracks for curtains and drapes, flexible metal track system with mounting hardware visible

LUXWORLD GlideMaster Flexi Curtain Tracks for curtains and drapes, adjustable metal rail system with ceiling mount design.

LUXWORLD

GlideMaster Flexi Curtain Tracks

Flexible Aluminium Curtain Tracking

GlideMaster Flexi
designed around the architecture of the window.

A slim bendable aluminium curtain track for straight, curved and selected custom layouts. GlideMaster Flexi combines Easy Clip mounting with smooth hand or wand operation for residential and commercial interiors.

20 × 8mm Profile Bendable Aluminium Ceiling or Face Fix Hand or Wand Drawn

Design Your Track → Explore Tracks

GlideMaster Flexi Bendable Aluminium Curtain Tracking System

Profile20 × 8mm

OperationHand or Wand

MountingCeiling or Face Fix

LayoutStraight or Curved

Why GlideMaster Flexi

Flexible by design. Refined in use.

01

Made for Custom Windows

Suitable for straight, curved, bay and selected custom layouts.

02

Smooth Everyday Movement

Roller and clear wave carriers support controlled curtain operation.

03

Simplified Installation

Easy Clip brackets support clean ceiling-fix and face-fix applications.

Technical Information

Essential specifications.

The key details most customers need before configuring their track.

Profile

20mm face × 8mm depth extruded aluminium profile

Operation

Hand drawn or operated with a compatible curtain wand

Mounting

Ceiling-fix or face-fix installation using Easy Clip brackets

Headings

S-Wave, pinch pleat and conventional curtain headings

Track Shape

Straight, curved and selected custom flexible layouts

Finish

White

View Builder & Installation Details

Construction

Premium bendable aluminium with a durable powder-coated finish.

Bracket Options

Easy Clip ceiling-fix and face-fix brackets for suitable single and double layouts.

Carrier Options

Roller carriers and clear wave carriers for conventional and S-Wave curtains.

Custom Layouts

Custom shapes require accurate dimensions, drawings, photos or a suitable template.

Available Finish

Clean, versatile white.

White A discreet finish suitable for most ceilings and contemporary interiors.

LUXWORLD5-Year Track Warranty

LUXWORLDMade to Order

LUXWORLDAustralia-Wide Delivery

LUXWORLDTechnical Project Support

Ready to configure your GlideMaster?

Enter your measurements and select the heading, fixing method and required shape. The LUXWORLD Design Studio™ prepares your customised configuration and compatible hardware.

Powered By LUXWORLD DESIGN STUDIO™

Design My Track →

Helpful Information

GlideMaster questions, answered.

Can GlideMaster Flexi be curved?

Yes. The bendable aluminium profile is suitable for curved and selected custom layouts when accurate measurements, plans or templates are supplied.

Is GlideMaster Flexi suitable for S-Wave curtains?

Yes. It supports S-Wave curtains with compatible clear wave carriers and the correct spacing.

Can GlideMaster Flexi be ceiling fixed or face fixed?

Yes. Easy Clip brackets are available for both ceiling-fix and face-fix applications.

Smofy Glydea™ ULTRA Curtain Tracks 60e S wave

Luxworld Smofy Glydea™ ULTRA Curtain Tracks 60e S wave for curtains and drapes, featuring sleek design and durable construction.

LUXWORLD Smofy Glydea™ ULTRA Curtain Tracks 60e S wave for curtains and drapes, showcasing a sleek, curved design for elegant window treatments.

Luxworld Smofy Glydea™ ULTRA 60e S wave curtain tracks for curtains and drapes, showcasing sleek design and high-quality construction.

LUXWORLD

Smofy Glydea™ ULTRA Curtain Tracks 60e S wave

Premium Somfy Motorised Curtain System

Somfy Glydea Ultra 60E
smooth automation for luxury curtains.

A premium Somfy motorised curtain system designed for smooth, ultra-quiet movement, smart control and elegant S-Wave or conventional curtain operation. Ideal for luxury homes, hotels, apartments, theatres and commercial interiors.

Somfy Glydea Ultra 60E Up to 60kg Curtain Capacity Ultra Quiet Operation Soft Start & Soft Stop Touch Motion 5-Year Somfy Motor Warranty

Custom Size Enquiry → Explore Tracks

Somfy Glydea Ultra 60E Motorised Curtain Track System

Ultra Quiet Curtain Automation

Premium movement with Somfy intelligence

The Somfy Glydea Ultra 60E is designed for high-end curtain automation where smooth movement, quiet performance and reliable control are essential. It is suitable for S-Wave, ripple fold and conventional curtain heading styles, making it a refined solution for both residential and commercial window furnishing projects.

Ultra Quiet Operation

Engineered for low-noise curtain movement, ideal for bedrooms, hotels, theatres and luxury interiors.

Up to 60kg Capacity

Suitable for large curtain systems and heavier fabrics when correctly specified and installed.

Soft Start & Stop

Smooth acceleration and gentle stopping helps protect the fabric and creates a premium user experience.

Touch Motion

Lightly pull the curtain and the motor takes over to open or close automatically where configured.

Smart Control

Operate by remote, app, schedule or compatible smart-home automation system.

5-Year Motor Warranty

Genuine Somfy Glydea motors are supported by a 5-year Somfy motor warranty.

Technical Information

Somfy Glydea Ultra Specifications

Important product details for homeowners, designers, builders and electricians.

Product

Somfy Glydea Ultra 60E Motorised Curtain Track System

Application

Motorised curtain system for premium residential and commercial interiors

Motor

Somfy Glydea Ultra 60E motor system

Capacity

Up to 60kg curtain weight, subject to track length, fabric weight, installation method and site conditions

Movement

Ultra quiet motorised movement with soft start and soft stop operation

Touch Motion

Manual pull activation available where configured, allowing the motor to take over movement

Controls

Remote control, app control, timer schedules and compatible smart-home integration options

Opening

Centre open, left stack or right stack depending on track configuration

Curtain Style

Suitable for S-Wave, ripple fold and conventional curtain heading styles

Installation

Ceiling fix or wall / face fix depending on bracket selection and site requirements

Power

Hardwired power supply required. Electrical connection should be completed by a licensed electrician.

Warranty

5-year Somfy motor warranty applies to the motor only. Track, installation, electrical work and accessories may have separate warranty conditions.

Smart Features

Designed for effortless daily living

Choose your curtain style, opening direction and control method based on your space and lifestyle.

01

Remote Control

Open and close curtains conveniently with Somfy remote control options.

02

App Control

Use compatible Somfy app systems to operate curtains from your phone.

03

Smart Home Ready

Integrate with compatible automation systems, scenes and scheduled operation.

04

Touch Motion

Gently pull the curtain and the motor can automatically complete the movement.

05

Manual Override

Manual operation may be available where applicable for practical everyday use.

06

Quiet Comfort

Low-noise motor performance makes it suitable for bedrooms, suites and quiet spaces.

Best Applications

Where Somfy Glydea works beautifully

01

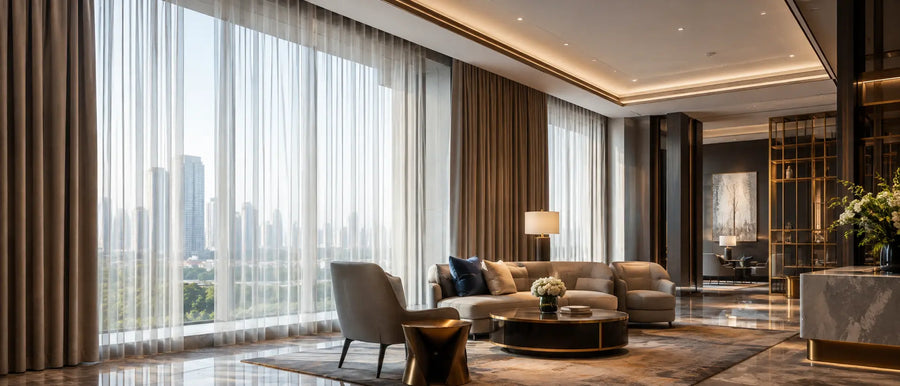

Luxury Homes

Perfect for bedrooms, living areas, high ceilings and premium window treatments.

02

Large Curtains

Suitable for selected wide openings and heavier curtain applications up to 60kg.

03

Hotels & Suites

Ideal for premium hospitality rooms requiring quiet and reliable curtain automation.

04

Home Theatres

Automate blockout curtains for comfort, privacy and cinema-style convenience.

05

Boardrooms

Control privacy, glare and presentation settings through automated curtain movement.

06

Commercial Interiors

Suitable for selected offices, fitouts, hospitality and architectural interior projects.

What to send for custom pricing

This product should be quoted based on track length, curtain weight, curtain heading, opening direction, control method, mounting style and installation requirements. Electrical planning should be confirmed before installation.

Custom Size Enquiry →

Include in your enquiry

Track length for each window
Approximate curtain weight if known
S-Wave, ripple fold or conventional heading
Ceiling fix or wall / face fix
Centre open, left stack or right stack
Remote, app or smart-home control
Power point or wiring location
Single or double curtain layout
Supply only or installation required
Delivery suburb or installation address
Window photos if available
Plans or drawings if available

Need help choosing a Somfy curtain system?

Luxworld can help with track length, curtain weight, heading style, motor selection, remote or app control, power planning and installation requirements before you order.

☎ (08) 6113 2462 📍 Coventry Village, Morley

Explore Tracks → Request Quote →

LUXWORLD Smart LED Motorised Curtain Track – WiFi-enabled motorised curtain track with integrated LED lighting, smart home control and ultra-quiet operation

LUX Glide Smart LED Motorised Curtain Tracks

LUXWORLD

LUX Glide Smart LED Motorised Curtain Tracks

Motorised LED Curtain Tracking

LUX Glide Smart LED
automation with ambient light.

A premium motorised curtain track system with integrated LED lighting, smooth automation, remote and app control, strong load support and a clean architectural finish.

Integrated LED LightingRemote & App ControlUltra-Quiet MotorUp to 60kg Capacity

REQUEST CUSTOM QUOTE →Explore Tracks

LUX Glide Smart LED Motorised Curtain Tracking System

SystemMotorised LED Track

ControlRemote, App & Smart Home

MountingCeiling or Face Fix

CapacityUp to 60kg

Why LUX Glide Smart LED

Curtain automation with built-in atmosphere.

01

Integrated LED

Built-in strip lighting creates soft ambient light along the curtain line.

02

Smart Control

Operate curtains by remote, app, schedule or compatible smart-home setup.

03

Strong, Quiet Performance

Supports selected curtain systems up to 60kg with smooth, low-noise motorised movement.

Technical Information

Smart specifications. Architectural performance.

Essential information for homeowners, designers, builders, installers and electricians.

Application

Motorised curtain tracking with integrated ambient LED lighting

Load Capacity

Supports curtain systems up to 60kg, subject to track length, fixing method and installation conditions

Controls

Remote control, app control and compatible smart-home integration

Power

240V power supply required; final connection by a licensed electrician

Mounting

Ceiling-fix or wall / face-fix installation

Curtain Styles

S-Wave and conventional curtain heading styles

View Builder & Installation Details

Construction

Premium powder-coated aluminium track construction.

Layouts

Single and double track layouts are available depending on site requirements.

LED

Integrated warm white LED strip; other options may be available on request.

Warranty

5-year track warranty. Motor, LED and electrical components may have separate supplier warranty terms.

Smart Features

Designed for modern living.

Remote Control

App Automation

LED Ambience

Quiet Motor

LUXWORLD5-Year Track Warranty

LUXWORLDCustom Made

LUXWORLDAustralia-Wide Delivery

LUXWORLDMotor & LED Support

Plan LUX Glide Smart LED for your exact project.

Send the track width, curtain weight, heading style, fixing method, control preference, LED preference and power location for a customised quotation.

REQUEST CUSTOM QUOTE →

Helpful Information

LUX Glide Smart LED questions, answered.

Is LUX Glide Smart LED suitable for S-Wave curtains?

Yes. The system supports S-Wave and conventional curtain headings with the correct compatible carriers.

Can it be ceiling fixed or face fixed?

Yes. Ceiling-fix and wall / face-fix installation options are available, subject to fixing structure.

Does the system require an electrician?

Yes. A 240V supply is required and final electrical connection should be completed by a licensed electrician.

LUXWORLD Dream Sheer Blinds Tracks showcasing sleek, lightweight window treatment with smooth track system for easy operation.

Luxworld Dream Blinds Ocean Drift curtains featuring soft, flowing fabric and elegant design for stylish window covering.

LUXWORLD Dream Sheer Blinds Tracks showing sleek, lightweight tracks designed for easy installation and smooth operation.

LUXWORLD Dream Sheer Blinds Tracks shown in a natural setting, featuring sleek, silver-colored tracks for window blinds.

LUXWORLD Dream Sheer Blinds Tracks installed, showing sleek, lightweight tracks for easy curtain hanging in modern windows.

LUXWORLD Dream Sheer Blinds Tracks, sleek and durable window treatment hardware for smooth installation.

LUXWORLD

Dream Sheer Blinds Tracks

Custom-Made in Perth • Express Shipping Australia-Wide • Residential & Commercial

Dream Sheer Blinds Tracks – Customisable, Durable & Stylish

Upgrade your windows with Dream Sheer Blinds Tracks, designed for both residential and commercial spaces across Australia. Fully customisable in colour and size, these tracks are crafted from high-quality aluminium for smooth operation, long-lasting durability, and elegant style.

Perfect for homes, offices, hospitals, and commercial interiors, our tracks provide versatile light control, from gentle light filtering to complete blackout. Their modern, sleek design blends seamlessly with any décor, while easy installation ensures a hassle-free setup for both DIY enthusiasts and professional installers.

Built for reliable performance and longevity, Dream Sheer Blinds Tracks allow curtains to glide effortlessly while maintaining a polished appearance. Whether you want functional privacy, glare reduction, or a stylish finishing touch, these tracks deliver a practical and aesthetic solution for every space.

We only manufacture motorised dream blinds tracks contact us if required on (08) 6113 2462

Wheel Runner For S Wave Curtains - WR-01 - LUXWORLD

LUXWORLD

Wheel Runner For S Wave Curtains - WR-01

Wheel Runner for S Wave Curtains – Smooth & Silent Curtain Glide

Upgrade your S wave curtains in Perth with the WR-01 Wheel Runner, designed to deliver effortless, silent, and smooth curtain movement. Perfect for both residential and commercial spaces, this high-quality runner enhances the look and function of your drapery system.

Key Features of the Wheel Runner for S Wave Curtains

Specifically made for S wave curtains to ensure a consistent flowing wave effect
Ultra-smooth and silent glide reduces friction and wear
Durable construction for long-lasting performance
Suitable for homes, hotels, offices, and more
Price range: $18.45 - $26.90 per meter

Why Choose WR-01 Wheel Runner?

The WR-01 reduces wear and tear on your curtains by minimizing friction, extending their lifespan. Easy to install without professional help, it offers a cost-effective upgrade for your curtain system. Compatible with various curtain fabrics and rail lengths, it’s ideal for heavy or long curtains needing smooth operation.

Enhance your Perth home or business with this durable, silent wheel runner and enjoy flawless curtain movement every day.

Series 67 Siena Tracks Heavy Duty Commercial Curtain Tracks

LUXWORLD Series 74 Venice Curtain Tracking system with metal tracks and pulley mechanisms for smooth curtain movement

Luxworld Series 67 Siena Tracks, 1000mm length, durable metal track system for lighting or shelving installations.

LUXWORLD Series 67 Siena Tracks in a natural wood finish, showcasing their sleek, modern design for ceiling or wall installation.

LUXWORLD Series 67 Siena Tracks, 1000mm long, with sleek black design and modern hardware for hanging curtains.

LUXWORLD Series 67 Siena tracks, 1000mm length, metal framing with sleek, modern design for lighting fixtures.

Luxworld Series 67 Siena Tracks in black metal, showing close-up of sleek, modern design for interior or exterior lighting installations.

LUXWORLD Series 67 Siena Tracks in a natural wood finish, showcasing sleek, modern design for window or door installation.

LUXWORLD Series 67 Siena Tracks in a natural wood finish, showcasing a sleek, modern design for interior decor.

Luxworld Series 67 Siena Tracks, 1000mm length, modern sleek design for contemporary interior lighting fixtures.

Luxworld Series 67 Siena Tracks in silver finish, featuring sleek metal design and multiple track sections for modern lighting setups.

LUXWORLD Series 67 Siena tracks, 1000mm length, showing sleek black metal design for modern lighting fixtures.

LUXWORLD Series 74 Venice curtain tracking system installed on window, white metal rail with hanging curtain clips.

LUXWORLD

Series 67 Siena Tracks Heavy Duty Commercial Curtain Tracks

Decorative Designer Curtain Tracking

Series 67
decorative hardware with architectural presence.

Series 67 Siena is a statement curtain track designed to remain visible as part of the interior. Its bold 35 × 17mm aluminium face supports conventional, pinch pleat and S-Wave curtains, with face-fix or ceiling-fix mounting, hand or straight-track cord operation, and four premium finish options.

35 × 17mm Face Profile Face & Ceiling Fix Hand or Cord Drawn Decorative Visible Track

Design Your Track → Explore Tracks

Series 67 Siena decorative aluminium curtain tracking system

Series 67 Decorative Designer Curtain Tracking System

Profile35 × 17mm Aluminium

OperationHand or Cord Drawn

MountingFace or Ceiling Fix

LayoutSingle, Double or Return

Why Series 67

A curtain track designed to be seen.

01

Bold Decorative Profile

The 35 × 17mm aluminium face provides a substantial designer-hardware appearance for feature windows.

02

Flexible Installation

Face-fix and ceiling-fix bracket options support single and double track layouts across different site conditions.

03

Multiple Heading Options

Suitable for conventional, pinch pleat and S-Wave curtains using roller, swivel, snap-in and clear wave carriers.

Technical Information

Decorative specifications with practical performance.

Essential Series 67 Siena information for homeowners, designers, builders and installers.

Profile

Approximately 24mm × 11mm slimline extruded aluminium profile

Operation

Hand drawn / manual curtain operation

Mounting

Ceiling-fix and face-fix options for single and double track systems

Headings

Conventional, S-Fold and Wave Fold curtain headings

Bending

Custom bending available for selected bay, corner and curved applications

Finishes

White, Platinum and Black

View Builder & Installation Details

Construction

Extruded aluminium with powder-coated and linished finish options.

Bracket Options

Face-fix and ceiling-fix brackets are available for suitable single and double track layouts.

Carrier Options

Roller, swivel, snap-in and clear S-Wave carriers are available for selected curtain headings.

Operation & Layout

Cord operation is best suited to suitable straight tracks. Selected corner-return layouts may be available subject to measurements and manufacturing approval.

Available Finishes

Four premium finishes for feature interiors.

White

Linished Silver

Black

Linished Champagne

5-Year Track Warranty

Made to Order

Australia-Wide Delivery

Technical Project Support

Configure Series 67 Siena for your exact curtain layout.

Enter the exact width, curtain heading, fixing method, single or double layout, operation, colour and stacking direction. The LUXWORLD Design Studio™ prepares the customised Series 67 configuration and compatible hardware.

Powered By LUXWORLD DESIGN STUDIO™

Design My Track →

Helpful Information

Series 67 questions, answered.

Is Series 67 suitable for S-Wave curtains?

Yes. Series 67 supports S-Wave, pinch pleat and conventional curtains with the correct carrier system.

Can Series 67 be ceiling fixed or face fixed?

Yes. Face-fix and ceiling-fix brackets are available for single and double track installations.

Can Series 67 be used for corner-return layouts?

Yes. Cord operation is best suited to suitable straight tracks. Selected corner-return layouts may be available subject to measurements and manufacturing approval.

Series 56 Curtain Track | Easy Clip S Fold Curtain Tracking Perth

LUXWORLD

Series 56 Curtain Track | Easy Clip S Fold Curtain Tracking Perth

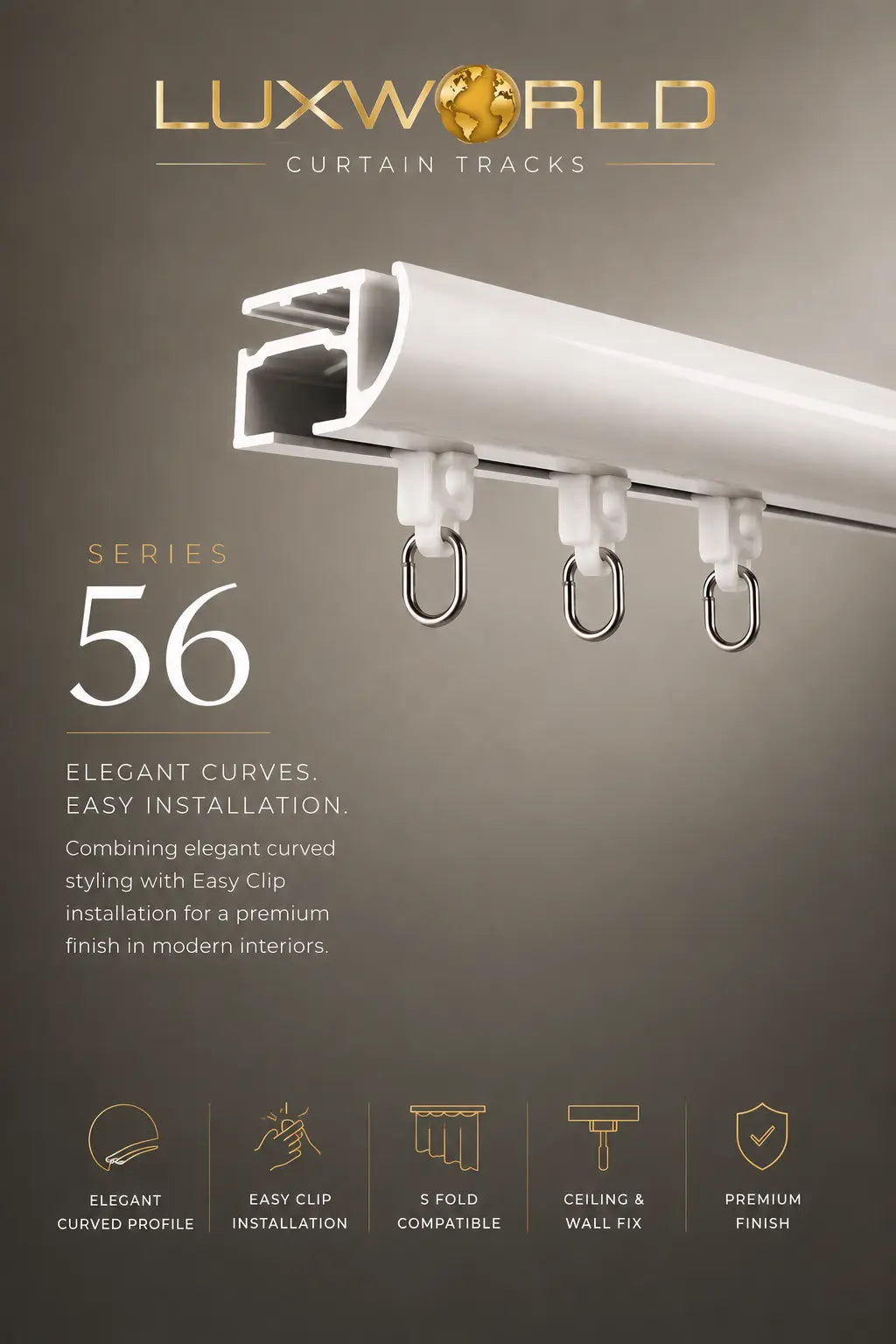

Elegant Easy Clip Curtain Tracking

Series 56
elegant curves with effortless installation.

Series 56 combines a refined curved 22.5 × 16mm aluminium profile with the practical Easy Clip bracket system. It is designed for modern homes, apartments and project interiors requiring smooth hand-drawn operation and clean mounting.

22.5 × 16mm Profile Easy Clip Brackets Hand Drawn Operation Straight Track System

Design Your Track → Explore Tracks

Series 56 Elegant Easy Clip Curtain Tracking System

Profile22.5 × 16mm Aluminium

OperationHand Drawn

MountingCeiling or Face Fix

LayoutStraight Track

Why Series 56

Refined appearance with practical installation.

01

Elegant Curved Profile

The softly curved aluminium profile provides a refined alternative to square-profile curtain tracks.

02

Easy Clip Installation

Compatible clip-in brackets simplify ceiling-fix and face-fix installation while maintaining a clean finish.

03

S-Fold & Conventional Ready

Suitable for conventional, S-Fold and Wave Fold curtains using compatible carriers and spacing.

Technical Information

Elegant specifications for everyday interiors.

Essential Series 56 information for homeowners, designers, builders and installers.

Profile

Approximately 22.5mm × 16mm extruded aluminium profile

Operation

Hand drawn / manual operation

Mounting

Easy Clip ceiling-fix and face-fix brackets; selected single and double track combinations available

Headings

Conventional, S-Fold and Wave Fold curtain headings

Bending

Straight track applications only

Finishes

White, Platinum and Black

View Builder & Installation Details

Construction

Extruded aluminium with powder-coated and electrophoretic finish options.

Bracket Options

Easy Clip ceiling-fix and face-fix brackets are available for selected single and double layouts.

Carrier Options

Roller carriers suit conventional curtains, while clear wave carriers suit S-Fold and Wave Fold systems.

Face-Fix Finish

Compatible cover plates help conceal bracket screws for a cleaner wall-mounted appearance.

Available Finishes

Three refined finishes for contemporary interiors.

White

Platinum

Black

LUXWORLD5-Year Track Warranty

LUXWORLDMade to Order

LUXWORLDAustralia-Wide Delivery

LUXWORLDTechnical Project Support

Configure Series 56 for your exact window.

Enter the exact width, single or double layout, curtain heading, fixing method, colour and stacking direction. The LUXWORLD Design Studio™ prepares the customised Series 56 configuration and compatible hardware.

Powered By LUXWORLD DESIGN STUDIO™

Design My Track →

Helpful Information

Series 56 questions, answered.

Is Series 56 suitable for S-Fold curtains?

Yes. Series 56 supports S-Fold and Wave Fold curtains when supplied with the correct clear carriers, spacing and curtain pocket allowance.

Can Series 56 be ceiling fixed or face fixed?

Yes. Easy Clip ceiling-fix and face-fix brackets are available, and face-fix cover plates help conceal fixing screws.

Can Series 56 be curved or bent?

Series 56 is designed as a straight-track system. Select another compatible LUXWORLD track when bends or continuous curves are required.

Commercial Curtain Tracks Perth – Durable & Functional

Series 70 Recess designed to disappear into the architecture.

Invisible by design. Precise by construction.

Seamless Ceiling Integration

Direct Structural Fixing

Conventional & S-Wave Ready

Essential recessed-track specifications.

Clean, seamless white.

Plan your recessed track with confidence.

Series 70 questions, answered.

Series 74 Venice crafted for interiors where every detail matters.

Decorative by design. Refined in every detail.

Architectural Elegance

Precision Installation

Conventional & S-Wave Ready

Essential decorative-track specifications.

Luxury finishes for contemporary interiors.

Create a track tailored to your interior.

Series 74 questions, answered.

Series 50 Milan compact engineering with refined presence.

Compact by design. Versatile in application.

Slim Square Profile

Easy Clip Installation

Conventional & S-Wave Ready

Essential slimline-track specifications.

Premium finishes for modern interiors.

Configure Series 50 for your exact project.

Series 50 questions, answered.

Series 51 commercial strength with residential versatility.

Commercial strength. Flexible in application.

Commercial-Grade Strength

Extensive Bracket Range

Conventional & S-Wave Ready

Essential commercial-track specifications.

Durable finishes for residential and commercial interiors.

Configure Series 51 for the exact curtain load.

Series 51 questions, answered.

Series 57minimal profile with commercial strength.

A discreet profile built for demanding projects.

Fineline Appearance

Flexible Mounting

S-Fold & Conventional Ready

Fineline specifications. Project-ready performance.

Architectural finishes for modern projects.

Configure Series 57 for your exact project.

Series 57 questions, answered.

Series 58designed to be seen less and appreciated more.

Minimal form with refined everyday performance.

Slimline Appearance

Flexible Mounting

S-Fold & Conventional Ready

Slim specifications. Refined performance.

Three refined finishes for modern interiors.

Configure Series 58 for your exact window and curtain layout.

Series 58 questions, answered.

Curtain Motor Rechargeable with Lithium battery

592411000 (MR68-1.5/100-ES)

GlideMaster Flexi designed around the architecture of the window.

Flexible by design. Refined in use.

Made for Custom Windows

Smooth Everyday Movement

Simplified Installation

Essential specifications.

Clean, versatile white.

Ready to configure your GlideMaster?

GlideMaster questions, answered.

Somfy Glydea Ultra 60E smooth automation for luxury curtains.

Premium movement with Somfy intelligence

Ultra Quiet Operation

Up to 60kg Capacity

Soft Start & Stop

Touch Motion

Smart Control

5-Year Motor Warranty

Somfy Glydea Ultra Specifications

Designed for effortless daily living

Remote Control

App Control

Smart Home Ready

Touch Motion

Series 70 Recess
designed to disappear into the architecture.

Series 74 Venice
crafted for interiors where every detail matters.

Series 50 Milan
compact engineering with refined presence.

Series 51
commercial strength with residential versatility.

Series 57
minimal profile with commercial strength.

Series 58
designed to be seen less and appreciated more.

GlideMaster Flexi
designed around the architecture of the window.

Somfy Glydea Ultra 60E
smooth automation for luxury curtains.

LUX Glide Smart LED
automation with ambient light.

Series 67
decorative hardware with architectural presence.

Series 56
elegant curves with effortless installation.
